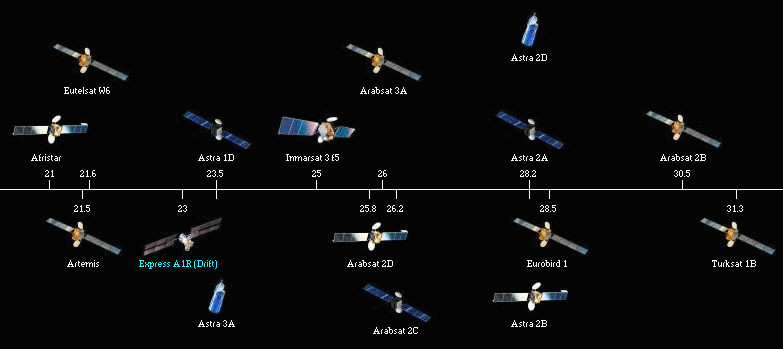

When the program is
running, in-orbit satellite constellation is displayed at user’s choice. By clicking on a single satellite
image on the interface screen, the detailed information of the satellite is
presented.
In-Orbit Satellite Database (ISD) and program provides detailed information
and statistics of satellites in geo-stationary orbit. The information
includes spacecraft properties and communications system characteristics. The
in-orbit satellites are also related to their ITU filings. The transponder
frequency plans and footprints are presented in graphics. Annual subscription of ISD allows you
obtain detailed, accurate and timely information about the status of
geo-stationary orbit.
Example of in-orbit satellite information
Nahuel 1
Spacecraft Highlights
=====================
Longitude: 71.8 degrees West
Operator: Nahuelsat
Country: Argentine
Status: Operational
Launch Date: 1/30/97
Design Lifetime: 12 years
Mass at Launch: 1790 Kg
Power Capability: 3200 Watts (BOL)
Main Contractor: Alcatel Space
Platform: SPACEBUS-2000
Launch Vehicle: Ariane-44L H10-3
Communications System Characteristics
=====================================
Uplink Frequency: 13.75~14.0 GHz, 14.0~14.5 GHz
Downlink Frequency: 11.45~11.7 GHz, 11.7~12.2 GHz
Transponder Bandwidth: 20x54 MHz
EIRP: R1: 49~52 dBW; R2: 49~52 dBW; R3: 40~45 dBW
Coverage Area: R1: Argentina and neighbors, R2: Brazil and neighbors, R3: US,
Mexico and Western part of South America.
ITU Filing Information
======================
|
|
FILING NETWORK
|
LOC
|
RSN
|
ATC
|
RCV DATE
|
PUB DATE
|
WIC NO
|
|
|
|
|
NAHUEL-C
|
-72
|
C
|
A
|
11/16/93
|
8/23/94
|
2141
|
|
|
|
|
NAHUEL-C
|
-72
|
N
|
M
|
5/7/01
|
5/28/02
|
2470
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency Plan
and Footprint
============================
List of 10
Largest Satellite Operators
======================================
|
OPERATOR
|
TOTAL NUMBER OF IN-ORBIT SATELLITES
|
EXCEEDED DESIGN LIFETIME
|
REACH LIFETIME IN 2 YEARS
|
|
INTELSAT (USA)
|
28
|
3
|
2
|
|
PANAMSAT (USA)
|
20
|
1
|
1
|
|
EUTELSAT (F)
|
18
|
1
|
1
|
|
SES AMERICOM (USA)
|
18
|
3
|
0
|
|
RSCC (RUS)
|
12
|
6
|
0
|
|
SES ASTRA (LUX)
|
12
|
1
|
1
|
|
INMARSAT (G)
|
10
|
4
|
0
|
|
ECHOSTAR (USA)
|
9
|
0
|
1
|
|
NASA (USA)
|
9
|
6
|
0
|
|
ISRO (IND)
|
8
|
0
|
0
|
List of Launch
Vehicle Manufacturers
====================================
|
MANUFACTURER
|
TOTAL LAUNCHED & CURRENTLY IN-ORBIT
|
LAUNCHED IN LAST 24 MONTHS
|
|
ARIANESPACE (ARIANE)
|
127
|
4
|
|
KHRUNICHEV SPACE CENTER (PROTON)
|
56
|
14
|
|
LOCKHEED MARTIN (ATLAS)
|
47
|
5
|
|
YUZHNOYE/SEA LAUNCH (ZENIT)
|
16
|
7
|
|
CHINA CALT (CZ)
|
16
|
3
|
|
BOEING (DELTA)
|
14
|
0
|
|
NASA (SHUTTLE)
|
6
|
0
|
|
INDIA ISRO (GSLV)
|
3
|
1
|
|
KOROLEV RSC ENERGIA (SOYUZ-FG)
|
2
|
2
|
|
JAPAN JAXA (H-2A)
|
2
|
0
|
|
|
